12mm Toughened Glass Retaining Wall Panels

FGRP12

Oxworks offers a selection of retaining wall panels designed for pool surrounds in areas with changes in level due to retaining walls. Our inventory includes panels suitable for retaining walls ranging from 1300mm to 2000mm in height, ensuring compliance with Australian Pool Safety Standards – AS1926.1.

These panels are compatible with any of our Frameless Glass Pool Fencing spigots or Semi-Frameless Glass Pool Fencing Glazing posts.
Your Location
Enter your location for delivery and availability
from $179.30 Inc GST



Description

Description

Product Overview

Oxworks offers a selection of retaining wall panels designed for pool surrounds in areas with changes in level due to retaining walls. Our inventory includes panels suitable for retaining walls ranging from 1300mm to 2000mm in height, ensuring compliance with Australian Pool Safety Standards – AS1926.1. These panels are compatible with any of our Frameless Glass Pool Fencing spigots or Semi-Frameless Glass Pool Fencing Glazing posts.

Features and Benefits

  • src=https://cdn-5c84bc36-b681cbc1.mysagestore.com/5ec0094a58a6edb7f7709c6774594487/contents/ckfinder/images/Product-Tab/Boxed_Tick.png
    12mm Toughened Safety Glass
  • src=https://cdn-5c84bc36-b681cbc1.mysagestore.com/5ec0094a58a6edb7f7709c6774594487/contents/ckfinder/images/Product-Tab/Boxed_Tick.png
    Fully Compliant to AS2208 (1996) - Safety Glazing Materials in Buildings
  • src=https://cdn-5c84bc36-b681cbc1.mysagestore.com/5ec0094a58a6edb7f7709c6774594487/contents/ckfinder/images/Product-Tab/Boxed_Tick.png
    Fully Compliant to AS1926.1 (2012) Australian Pool Safety Standards
  • src=https://cdn-5c84bc36-b681cbc1.mysagestore.com/5ec0094a58a6edb7f7709c6774594487/contents/ckfinder/images/Product-Tab/Boxed_Tick.png
    Polished all edges
  • src=https://cdn-5c84bc36-b681cbc1.mysagestore.com/5ec0094a58a6edb7f7709c6774594487/contents/ckfinder/images/Product-Tab/Boxed_Tick.png
    Safety Tip Corners

Specifications

Specifications

Product Specifications

Material Toughened Safety Glass
Glass Thickness 12mm
Glass Edge Finish Flat Polished
Glass Corner Finish Safety Tipped
Compliance AS2208 (1996) - Safety Glazing Materials in Buildings & AS1926.1 (2012) Australian Pool Safety Standards
Warranty 10 years - Conditions Apply

Resources

Resources

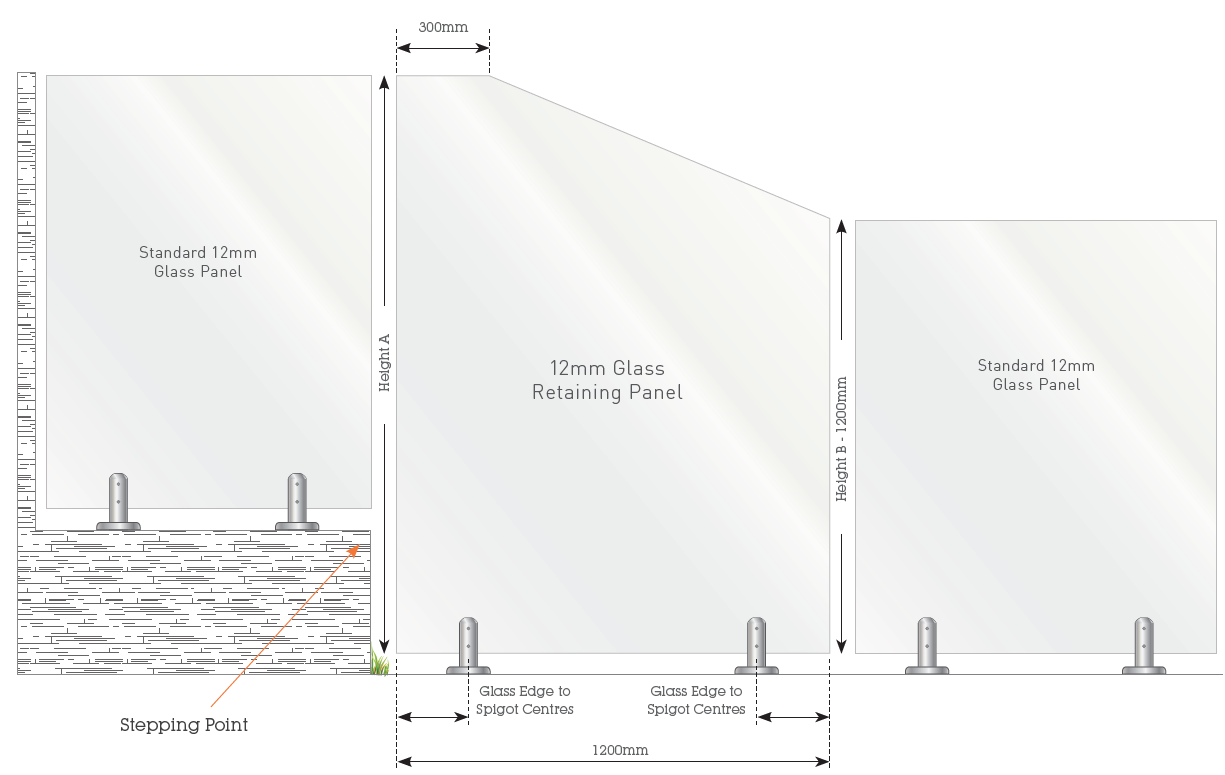

Retaining Wall Glass Panel Spigot Spacing Guide:

CODE GLASS THICKNESS PANEL WIDTH PANEL HEIGHTS PANEL WEIGHT GLASS EDGE TO SPIGOT CENTRES
FG4130 12mm 1200mm 1300/1200mm 45kg 200mm
FG4140 12mm 1200mm 1400/1200mm 48kg 200mm
FG4150 12mm 1200mm 1500/1200mm 51kg 200mm
FG4160 12mm 1200mm 1600/1200mm 55kg 200mm
FG4170 12mm 1200mm 1700/1200mm 59kg 200mm
FG4180 12mm 1200mm 1800/1200mm 62kg 200mm



Availability

Availability

Product Availability

Ex Warehouse Product:  These products are available Ex Warehouse from our distribution centre - Please allow an extra 3-5 days to transfer to store.

Not all products are stocked at all stores. While we aim to provide a wide range across all locations, space constraints may limit availability.





Delivery Outside Store Zones:  Delivery outside of our store zones may be possible using 3rd party couriers.

For more information on Delivery options or Stock Availability please contact websales@oxworks.com.au.



*Delivery times may varry depending on truck schedules and when your order is recived by our team.

The map above indicates the states of individual stores. Delivery options may be restricted within state to the store delivery zones and might necessitate the use of third-party couriers for regional locations.

Warranty/Return

Warranty/Return

Warranty & Returns

We take the quality of our products seriously…

We manufacture our products properly, using quality raw materials, and we don’t take any shortcuts. We are so confident in this that we back our products with a 10 Year Warranty.

Our comprehensive product testing enables us to offer a 10-year structural warranty throughout Australia.

This warranty covers the structural integrity of your complete fence, gate, screen, or balustrade and is your guarantee that our products will remain standing for years to come.
